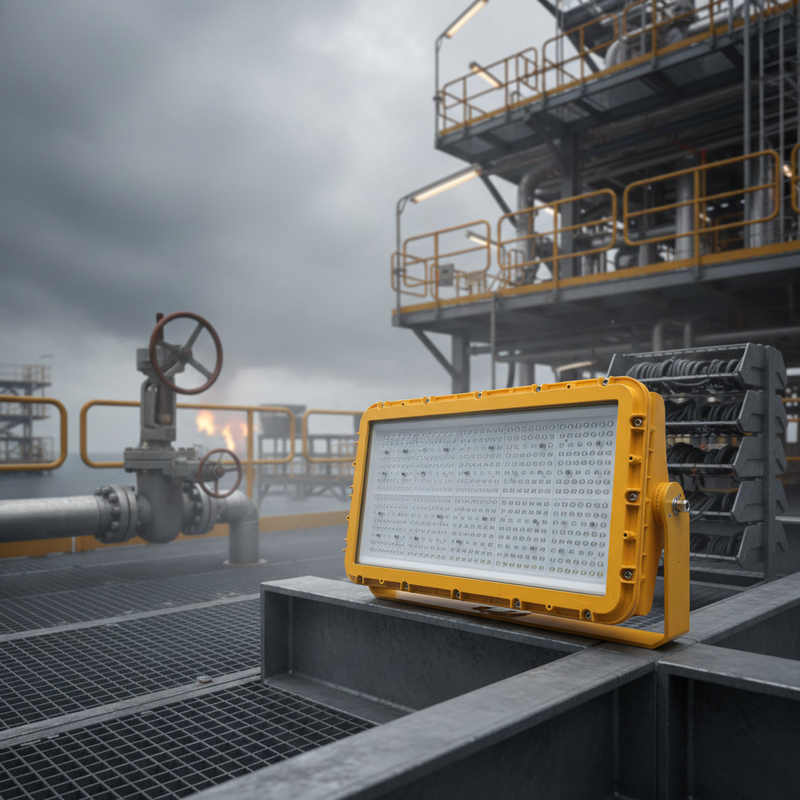

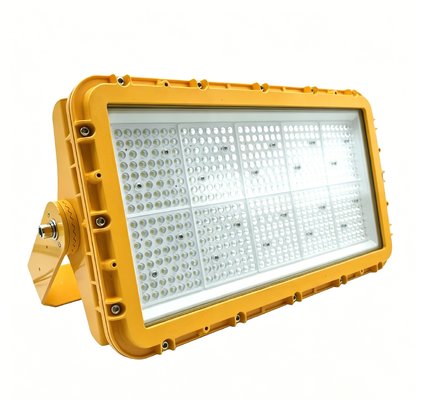

600W High Power LED Explosion Proof Flood Light with ATEX Ex db mb IIB T6 Certification and 60° Beam Angle
Datos del producto:
| Lugar de origen: | Cantón, China |
| Nombre de la marca: | ECER |
| Certificación: | ATEX Ex db mb IIB T6, CE, ROHS, CCC |
| Número de modelo: | RFEPL8280-600W-GRIS |
Pago y Envío Términos:
| Cantidad de orden mínima: | 10 piezas |
|---|---|
| Precio: | Negociable |
| Detalles de empaquetado: | Envase de caja + burbuja o según lo deseado |
| Tiempo de entrega: | 10-15 días o confirmación |
| Condiciones de pago: | T/T, Unión Occidental |
| Capacidad de la fuente: | 5000 unidades/mes |
|
Información detallada |
|||
| Fuerza: | 600W | Eficiencia lumínica: | 100-120LM/W |
|---|---|---|---|
| microprocesador llevado: | LUMILEDS SMD (LM-80) | Ángulo de haz: | 60° |
| Temperatura de color: | 5000K | Clasificación IP: | IP65 |
| Marca a prueba de explosiones: | Ex db mb IIB T6 - IP65 - WF2 | protección contra rayos: | 6KV |
| Material: | Aluminio ADC12 + Vidrio Templado | Finalizar: | Gris |
| Certificación: | ATEX, CE, ROHS, CCC | Vida: | 50.000 horas |
| Temperatura de funcionamiento: | -40°C a +60°C | ||
| Resaltar: | 600W Grey Finish Ex Light,60° ATEX Industrial Floodlight,LUMILEDS Standard Hazardous Lighting |
||
Descripción de producto
600W LED Explosion Proof Flood Light 60° Grey Industrial Standard Low-Profile ATEX IIB T6 IP65
Product Overview
The RFEPL8280-600W-GRY is a 600W LED explosion proof flood light from the RFEPL8280 series, delivering 72000lm luminous flux with 120lm/W efficiency. ATEX Ex db mb IIB T6 certified with IP65 WF2 protection, this Grey finish floodlight features LUMILEDS SMD chip technology (LM-80 tested), 6KV lightning protection, and all-stainless-steel hardware passing 500-hour salt spray testing.
Key Features
- LUMILEDS SMD Technology - LM-80 tested premium LED chips delivering 120lm/W with CRI ≥80 and 50,000-hour L70 lifespan
- ATEX Ex db mb IIB T6 Certified - Zone 1/Zone 2 gas and Zone 21/Zone 22 dust hazardous atmospheres, temperature classes T1-T6
- 60° Beam Configuration - 60° Grey Finish Industrial Standard for precise light distribution
- Grey Paint Finish - Durable powder coat finish with 500-hour salt spray certification on all stainless steel hardware
- Die-Cast Fin Heat Dissipation - Advanced aluminum substrate thermal management for reliable 600W continuous operation
- 6KV Lightning Protection - Built-in surge suppression for exposed outdoor industrial installations
- 180° Adjustable Bracket - Flexible angle adjustment with six mounting configurations available
- IP65 Waterproof WF2 - Sealed against dust and water jets with corrosion-resistant design
- Universal AC 100-277V - Power factor ≥0.95, compatible with global electrical systems
- CE, ROHS, CCC Certified - Full international compliance for global deployment
Applications
- Oil extraction, refining and petrochemical processing
- Offshore platforms, FPSOs and drilling rigs
- Chemical storage, mixing and manufacturing facilities
- Electric power generation and distribution stations
- Militar.y and defense hazardous installations
Technical Specifications
| Model Number | RFEPL8280-600W-GRY |
| Item No. | RFEPL8280 |
| Power | 600W |
| Light Efficiency | 100-120lm/W |
| LED Chip | LUMILEDS SMD (LM-80) |
| Beam Angle | 60° |
| CRI | ≥80 |
| Explosion-Proof Mark | Ex db mb IIB T6 - IP65 - WF2 |
| Lightning Protection | 6KV |
| Material | Aluminum ADC12 + Tempered Glass |
| Finish | Grey |
| Mounting | Ceiling / Boom / Bracket / Wall / Flange / Guardrail |
| Certification | ATEX, CE, ROHS, CCC |
| Lifetime | 50,000 Hours |
| Operating Temperature | -40°C to +60°C |
The RFEPL8280 series delivers industrial-grade hazardous area illumination with LUMILEDS LED efficiency and ATEX-certified safety. Every unit is factory-tested for explosion-proof integrity and photometric performance.
For bulk pricing, OEM customization, or technical consultation, please contact our sales team.
