LUMILEDS LM-80 300W LED Explosion Proof Flood Light ATEX Ex db mb IIb T6 100-120LM/W IP65 Hazardous Area Lighting
Datos del producto:
| Lugar de origen: | Porcelana |
| Nombre de la marca: | RFEPL |
| Certificación: | CE, ROHS, CCC, ATEX |
| Número de modelo: | RFEPL8280-300W |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 pieza |
|---|---|
| Precio: | USD 289-579/Piece |
| Detalles de empaquetado: | Cartón de exportación K=K con protección interior de espuma EPE |
| Tiempo de entrega: | 15-25 días laborables |
| Condiciones de pago: | T/T, L/C, Unión Occidental |
| Capacidad de la fuente: | 5000 piezas por mes |
|
Información detallada |
|||
| Fuerza: | 300W | Eficacia luminosa: | 100-120 lm/w |
|---|---|---|---|
| Marca de chips LED: | Las luces de luz | Certificación de LED: | LM-80 |
| Voltaje de entrada: | AC100-277V, 50/60Hz | Factor de potencia: | ≥0,95 |
| Certificaciones: | CE, ROHS, CCC, ATEX | Estándar a prueba de explosiones: | Ex db mb IIb T6 |
| Protección de ingreso: | IP65 | Protección de tiempo: | WF2 |
| Protección contra sobretensiones: | 6KV | Índice de reproducción cromática: | IRC ≥80 |
| Material de la carcasa: | Aluminio fundido a presión + Vidrio templado | Opciones del ángulo de haz: | 30° / 60° / 90° |
| Especificación de cable: | 1,0 mm² (resistente al fuego) | Acabado superficial: | Recubrimiento en polvo electrostático (amarillo/gris) |
| Duración de vida: | 50.000 horas (L90) | Temperatura de funcionamiento: | -40°C a +60°C |
| Humedad de funcionamiento: | 10% a 90% HR (no condensación) | Opciones de montaje: | Techo, pluma, soporte, pared, brida, barandilla |
| Resaltar: | ATEX explosion proof LED flood light,300W hazardous area lighting,IP65 rated explosion proof light |
||
Descripción de producto
LUMILEDS LM-80 300W LED Explosion Proof Flood Light
ATEX Ex db mb IIb T6 100-120LM/W IP65 Hazardous Area Lighting
Product Overview
The RFEPL8280-300W LED Explosion Proof Flood Light represents a breakthrough in hazardous area illumination technology. Built around genuine LUMILEDS LM-80 certified LED chips, this 300-watt industrial flood light achieves an extraordinary luminous efficacy of 100-120 lumens per watt, setting a new benchmark for energy efficiency in explosion proof lighting applications.

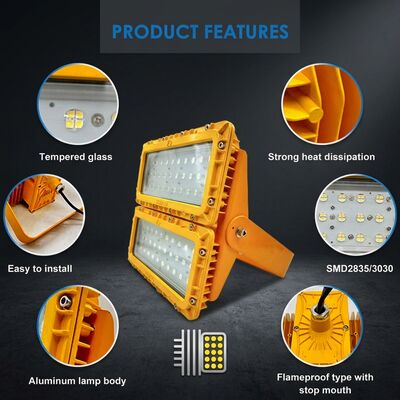

The advanced SMD chip-on-board architecture ensures uniform light distribution with minimal glare, while the precision-engineered optical lens system offers three selectable beam angles of 30°, 60°, and 90° to accommodate diverse area coverage requirements.

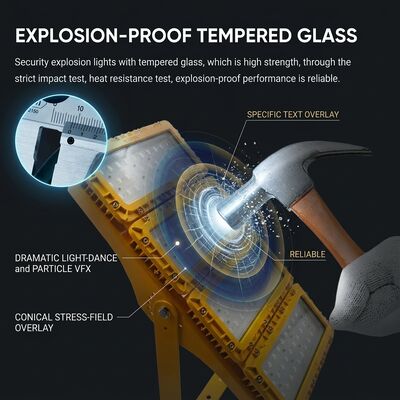

Certified to ATEX Ex db mb IIb T6 standards, the flameproof aluminum housing and tempered glass lens assembly safely contains any potential internal ignition source, making this luminaire suitable for continuous operation in Zone 1 and Zone 2 hazardous areas where flammable gases of Group IIB may be present.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | RFEPL8280-300W |
| Rated Power | 300W |
| Luminous Efficacy | 100-120 LM/W |
| LED Chip Brand | LUMILEDS (LM-80 Certified) |
| Input Voltage | AC100-277V, 50/60Hz |
| Power Factor | ≥0.95 |
| Explosion Proof Standard | Ex db mb IIb T6 |
| Ingress Protection | IP65 |
| Weather Protection | WF2 |
| Surge Protection | 6KV |
| Color Rendering Index | CRI ≥80 |
| Housing Material | Die-Cast Aluminum + Tempered Glass |
| Product Dimensions | L425*W240*H165mm |
| Net Weight | 10.5 kg |
| Beam Angle Options | 30° / 60° / 90° |
| Mounting Options | Ceiling, Boom, Bracket, Wall, Flange, Guardrail |
| Surface Finish | Electrostatic Powder Coating (Yellow / Grey) |
| Cable Specification | 1.0mm² (Fire-Resistant) |
| Rated Lifespan | 50,000 Hours (L90) |
| Operating Temperature | -40°C to +60°C |
| Operating Humidity | 10% to 90% RH (Non-Condensing) |
| Certifications | CE, ROHS, CCC, ATEX |
Applications
The RFEPL8280 series explosion proof LED flood light is engineered for hazardous area illumination across a comprehensive range of industrial sectors:
- Oil & Gas: Offshore drilling platforms, onshore wellhead sites, pipeline compressor stations, refinery process units, and petroleum storage tank farms
- Chemical & Petrochemical: Reactor areas, solvent processing zones, distillation columns, and bulk chemical storage warehouses
- Mining Operations: Coal preparation plants, conveyor galleries, crusher stations, and underground loading areas
- Additional Applications: Pharmaceutical manufacturing suites, paint spray booths, grain handling and storage silos, wastewater treatment digester buildings, marine vessel painting docks, and aviation fuel handling facilities
The versatile six-way mounting system supports ceiling, boom, bracket, wall, flange, and guardrail installations, enabling optimal light placement across any industrial infrastructure configuration.
Packaging & Quality Assurance
Every RFEPL8280 luminaire undergoes rigorous end-of-line testing including full photometric verification, high-potential dielectric testing at 1500VAC, and complete ATEX compliance inspection before shipment from our ISO 9001 certified manufacturing center.
Products are individually wrapped in anti-static EPE foam and securely packed in double-wall K=K export-grade corrugated cartons with reinforced edge protectors and moisture-barrier lining.
Each shipment includes a comprehensive quality certificate, ATEX Declaration of Conformity, detailed installation and maintenance manual, and a 3-year manufacturer warranty covering all electrical and mechanical components.
We maintain strategic spare parts inventories for LED modules, drivers, gaskets, and mounting accessories to support rapid-response after-sales service worldwide. Custom labeling, private brand packaging, and application-specific mounting kit configurations are available for OEM partnerships and large-scale project procurement.
