50000H Long-Life 300W LED Explosion Proof Light 30 60 90 Beam LUMILEDS LM-80 ATEX IIb T6 IP65 Hazardous Area Fixture
Datos del producto:
| Lugar de origen: | Porcelana |
| Nombre de la marca: | RFEPL |
| Certificación: | CE, ROHS, CCC, ATEX |
| Número de modelo: | RFEPL8280-300W-MB |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 pieza |
|---|---|
| Precio: | USD 309-599/Piece |
| Detalles de empaquetado: | Cartón de exportación K=K con protección interior de espuma EPE |
| Tiempo de entrega: | 15-25 días laborables |
| Condiciones de pago: | T/T, L/C, Unión Occidental |
| Capacidad de la fuente: | 5000 piezas por mes |
|
Información detallada |
|||
| Fuerza: | 300W | Eficacia luminosa: | 100-120 lm/w |
|---|---|---|---|
| Marca de chips LED: | Las luces de luz | Certificación de LED: | LM-80 |
| Voltaje de entrada: | CA100-277V | Factor de potencia: | ≥0,95 |
| Certificaciones: | CE, ROHS, CCC, ATEX | Estándar a prueba de explosiones: | Ex db mb IIb T6 |
| Protección de ingreso: | IP65 | Protección de tiempo: | WF2 |
| Protección contra sobretensiones: | 6KV | Índice de reproducción cromática: | IRC ≥80 |
| Material de la carcasa: | Aluminio + vidrio templado | Opciones del ángulo de haz: | 30°/60°/90° (Seleccionable) |
| Especificación de cable: | 1,0 mm² | Acabado superficial: | Pintura Amarillo / Gris |
| Duración de vida: | 50.000 horas (L90) | Temperatura de funcionamiento: | -40°C a +60°C |
| Humedad de funcionamiento: | 10% a 90% RH | ||
| Resaltar: | 300W LED explosion proof light,ATEX IIb hazardous area fixture,LUMILEDS LM-80 explosion proof lighting |
||
Descripción de producto

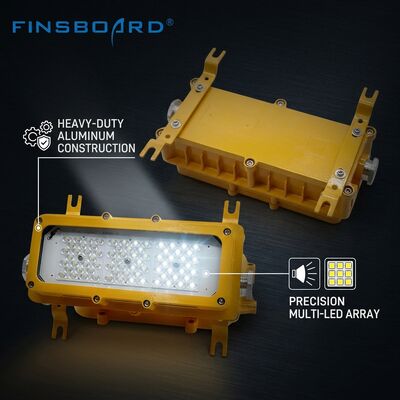

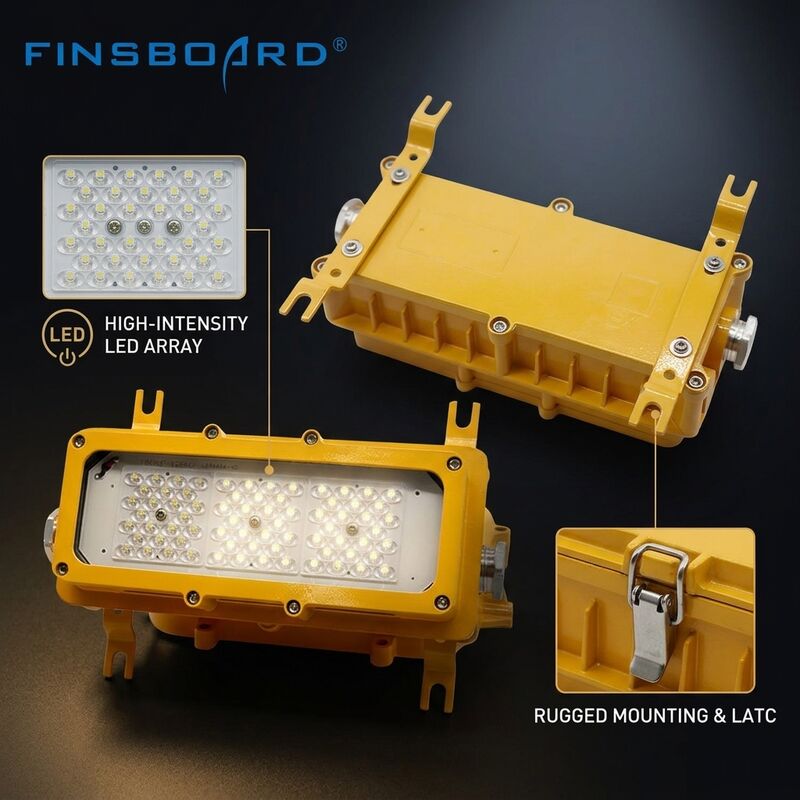

50000H Long-Life 300W LED Explosion Proof Light
The RFEPL8280-300W-MB redefines long-term value in hazardous area illumination by combining an extraordinary 50,000-hour L90 rated service life with a versatile multi-beam optical system. This advanced fixture adapts to diverse installation geometries while maintaining exceptional performance in demanding environments.
Key Advantages: LUMILEDS LM-80 certified LED chips operated below maximum rating, advanced passive thermal management, and three precisely engineered beam angle options (30°, 60°, 90°) for optimal coverage patterns.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | RFEPL8280-300W-MB |
| Rated Power | 300W |
| Luminous Efficacy | 100-120 LM/W |
| LED Chip Brand | LUMILEDS (LM-80 Certified) |
| Lumen Maintenance | L90 @ 50,000 Hours (TM-21 Projected) |
| Input Voltage | AC100-277V, 50/60Hz |
| Power Factor | ≥0.95 |
| Color Rendering Index | CRI ≥80 |
| Beam Angle Options | 30° (Narrow) / 60° (Medium) / 90° (Wide) |
| Explosion Proof Standard | Ex db mb IIb T6 |
| Ingress Protection | IP65 |
| Housing Material | Die-Cast Aluminum + Tempered Glass |
| Operating Temperature | -40°C to +60°C |
| Certifications | CE, ROHS, CCC, ATEX |
Industrial Applications
This explosion-proof lighting solution is engineered for demanding hazardous area applications where reliability, longevity, and flexible beam control deliver maximum operational value.
- Refinery & Petrochemical Complexes: Standardized platform covering multiple area types with appropriate beam optics
- Mining Operations: 50,000-hour lifespan reduces costly production shutdowns for maintenance
- Pharmaceutical & Chemical Manufacturing: CRI 80+ color rendering for quality control inspection areas
- Food Processing Plants: Multi-beam flexibility adapts to changing equipment layouts
- Emergency Egress Lighting: Reliable illumination meeting life-safety regulatory requirements
Quality Assurance & Support
Each unit undergoes comprehensive quality control including LM-79 photometric testing and individual beam pattern verification. Products are packed in export-grade protective packaging with clear labeling.
Warranty: Comprehensive 3-year coverage for complete luminaire including LED modules, driver, and optical components.
Engineering Support: Complimentary lighting design services including photometric calculations and layout recommendations to meet OSHA, IEC, and local regulatory requirements.
