600W Explosion Proof LED Flood Light ATEX Narrow Beam 60° Long-Range Tower Chimney 72000lm IP66 Die-Cast Aluminum ADC12
Datos del producto:
| Lugar de origen: | Cantón, China |
| Nombre de la marca: | Fins board, BOCAQ |
| Certificación: | CE,ROHS,FCC,PSE,CCC,ATEX, ISO9001,BSCI |
| Número de modelo: | EPFL-600W-NB60 |
Pago y Envío Términos:
| Cantidad de orden mínima: | 10 piezas |
|---|---|
| Precio: | Negociable |
| Detalles de empaquetado: | Envase de caja + burbuja o según lo deseado |
| Tiempo de entrega: | 10-15 días o confirmación |
| Condiciones de pago: | T/T, Unión Occidental |
| Capacidad de la fuente: | 5000 unidades/mes |
|
Información detallada |
|||
| Fuerza: | 600W | Flujo luminoso: | 72000lm |
|---|---|---|---|
| Eficacia: | 120 lm/s | Temperatura de color: | 5000K (blanco frío) |
| Ángulo de haz: | 60° | voltaje de entrada: | Las emisiones de gases de efecto invernadero se calcularán en función de las emisiones de gases de e |
| microprocesador llevado: | Bridgelux SMD 3030 | Clasificación IP: | IP66 |
| Material de la carcasa: | ADC12 de aluminio fundido a presión con reflector de alta eficiencia | Material de la lente: | Vidrio Templado 5mm |
| Temperatura de funcionamiento: | -40°C a +60°C | Certificación: | ATEX II 2G Ex d IIC T6 Gb |
| Esperanza de vida: | ≥50.000 horas L70 | Garantía: | 5 años |
| Resaltar: | Narrow Beam Explosion Proof,600W ATEX Long-Range Light,60° Hazardous Area Floodlight |
||
Descripción de producto

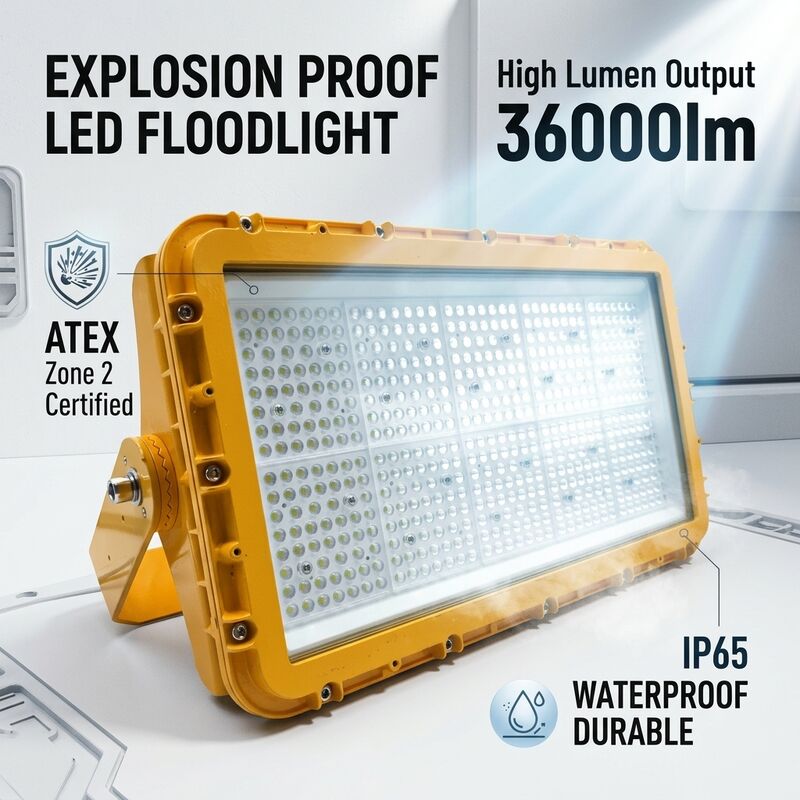

600W Explosion Proof LED Flood Light ATEX Narrow Beam 60°
The EPFL-600W-NB60 is a 600W explosion proof LED flood light engineered for demanding industrial environments. This narrow 60° floodlight provides exceptional illumination while maintaining the strictest safety standards for hazardous locations.
Key Features
- 600W High Power Output - 72000lm total luminous flux with 120lm/W efficacy, replacing traditional HID equivalents with significant energy savings
- ATEX Certified - ATEX II 2G Ex d IIC T6 Gb for hazardous gas and dust atmospheres
- Robust Die-Cast Aluminum ADC12 Housing - High-efficiency reflector with corrosion-resistant coating for long-term durability
- IP66 Protection - Fully sealed against environmental ingress, suitable for the harshest industrial environments
- 5mm Tempered Glass Lens - High-transmittance safety glass with impact resistance rating
- Bridgelux SMD 3030 LEDs - Premium LED chips delivering stable 5000K (Cool White) light with excellent uniformity
- 60° Beam Angle - Precision narrow beam for long-distance projection and high-mast applications
- Universal Voltage Input - AC 100-277V 50/60Hz compatible with global electrical systems
- Multiple Mounting Options - Adjustable bracket, pole mount, and ceiling mount configurations included
- 5-Year Warranty - Backed by ≥50,000 hours L70 lifespan testing
- Long-Range Illumination - Effective illumination up to 80 meters, ideal for high mast towers, chimney stacks, and remote tank farm perimeters
Applications
- High mast towers, chimney stacks, storage tank farms, and long-distance area illumination
- Oil refineries and petrochemical processing plants
- Offshore drilling platforms and FPSO vessels
- Chemical storage warehouses and mixing facilities
- Gas compressor stations and LNG terminals
- Paint spray booths and solvent handling areas
Technical Specifications
| Model Number | EPFL-600W-NB60 |
|---|---|
| Power Consumption | 600W |
| Luminous Flux | 72000lm |
| Efficacy | 120lm/W |
| Color Temperature | 5000K (Cool White) |
| Beam Angle | 60° |
| Input Voltage | AC 100-277V 50/60Hz |
| LED Chip | Bridgelux SMD 3030 |
| IP Rating | IP66 |
| Housing Material | Die-Cast Aluminum ADC12 with High-Efficiency Reflector |
| Lens | Tempered Glass 5mm |
| Operating Temperature | -40°C to +60°C |
| Mounting | Adjustable Bracket / Pole Mount / Ceiling Mount |
| Certification | ATEX II 2G Ex d IIC T6 Gb |
| Lifespan | ≥50,000 Hours L70 |
| Warranty | 5 Years |
ECER delivers explosion proof LED flood lights that combine cutting-edge LED technology with rigorous safety engineering. Each unit undergoes 100% factory testing including pressure testing of the explosion-proof enclosure and photometric verification.
For bulk orders, OEM/ODM customization, or technical inquiries, please contact our sales team.
For bulk orders, OEM/ODM customization, or technical inquiries, please contact our sales team.
