Outdoor Ip65 Waterproof Gas Station Aluminum Led Explosion Proof Light
Datos del producto:
| Lugar de origen: | China continental |
| Nombre de la marca: | Finboard |
| Certificación: | CE,ROHS,FCC,PSE,CCC,ATEX, ISO9001,BSCI |
| Número de modelo: | Las condiciones de los certificados de seguridad |
Pago y Envío Términos:
| Cantidad de orden mínima: | 10 por ciento |
|---|---|
| Precio: | Negociable |
| Detalles de empaquetado: | Envase de caja + burbuja o según lo deseado |
| Tiempo de entrega: | 25-30days o confirmar |
| Condiciones de pago: | T/t, unión occidental |
| Capacidad de la fuente: | 5000pcs/mes |
|
Información detallada |
|||
| Palabras clave: | Iluminación LED de las plataformas ferroviarias | Factor de potencia: | ≥0.95 |
|---|---|---|---|
| Flujo luminoso: | 3900-7800lm | Nivel de protección: | IP65 |
| Temperatura del color: | 2700-6500K | Índice de renderizado de color: | 80ra |
| La vida laboral: | ≥50000h | Estándares ejecutivos: | GB7000, GB 24906, GB/T 24907 y otros. |
| Resaltar: | IP65 waterproof LED explosion proof light,aluminum gas station explosion proof light,outdoor explosion proof lighting with warranty |
||
Descripción de producto

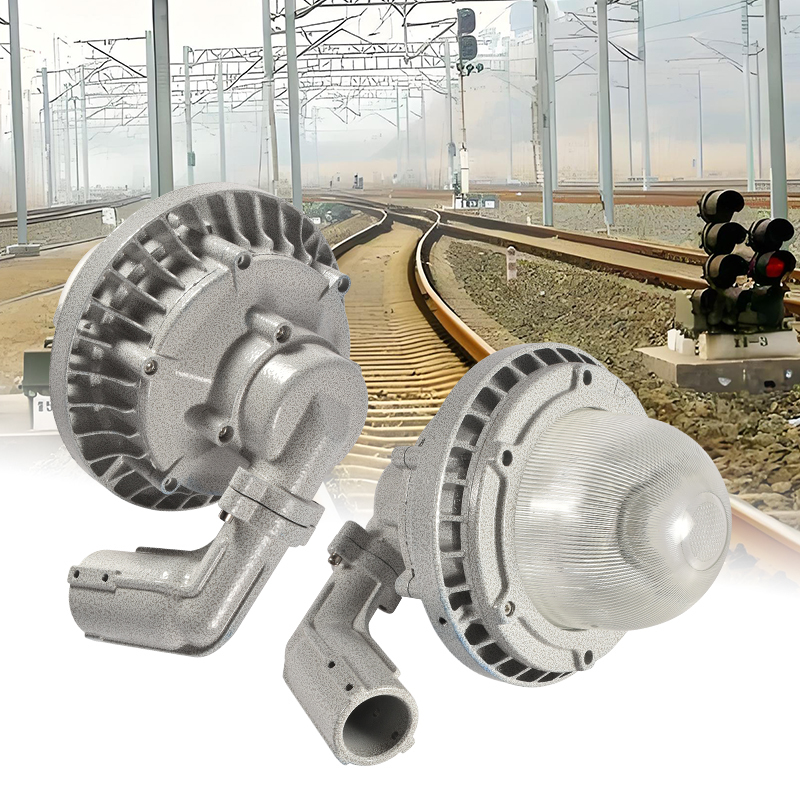

Outdoor IP65 Waterproof Gas Station Aluminum LED Explosion Proof Light
Product Attributes
| Attribute | Value |
|---|---|
| Keywords | LED railway platform lighting |
| Power Factor | ≥0.95 |
| Luminous Flux | 3900-7800lm |
| Protection Level | IP65 |
| Color Temperature | 2700-6500K |
| Color Rendering Index | 80Ra |
| Working Life | ≥50000H |
| Executive standards | GB7000,GB 24906,GB/T 24907 etc. |
Robust Construction and Safety Features
The RFEPL-8120 boasts an aircraft-grade aluminum housing paired with 5mm tempered glass, creating a virtually indestructible enclosure. The IP65 rating ensures complete protection against:
- Dust ingress in mining and industrial environments
- High-pressure water jets in port terminals and offshore platforms
- Corrosive elements in chemical processing plants
The explosion-proof design incorporates:
- Reinforced seams and gaskets to prevent gas penetration
- Spark-free electrical components
- Thermal management to prevent overheating
Advanced Optical Performance
Utilizing high-efficiency SMD2835/3030 LEDs, these fixtures achieve:
- 100-110 lm/W luminous efficacy (30% higher than industry average)
- 5500-6500K color temperature for optimal visibility
- CRI ≥80 for accurate color rendering in critical applications
The optical system features:
- Precision-engineered reflectors for uniform light distribution
- Anti-glare technology to reduce worker fatigue
- 120° beam angle for wide area coverage
Specifications
| Feature | Specification |
|---|---|
| Model | Industrial LED Explosion-Proof Light |
| Power Options | 120W |
| Material | Aluminum Alloy + Tempered Glass |
| IP Rating | IP65 (Dustproof & Waterproof) |
| Explosion-Proof Cert. | ATEX, IECEx (Zone 1/2, 21/22) |
| Luminous Efficiency | 100-120 lm/W |
| Color Temperature | 5500-6500K (Daylight White) |
| CRI (Color Rendering) | ≥80 (True Color Visibility) |
| Input Voltage | AC 85-265V (50/60Hz) |
| LED Chip | High-Quality Lumileds/SMD 3030 |
| Lifespan | 30,000+ hours |
| Warranty | 3 Years (Extendable to 5 Years) |
| Working Temperature | -30°C to +60°C |
| Mounting Options | Bracket, Pendant, Ceiling |
